Lumperia 75

145 - 160Lm/W

130 - 145Lm/W

120 - 130Lm/W

Minimum 70 microns electrostatically powder-coated aluminum injection body and front cover

Minimum 70 microns electrostatically powder-coated mounting arm, adjustable horizontally (-15°, +15°) and vertically (0°, +15°)

4 mm thick tempered glass

High Power LED with L90B10 >100,000 hours high efficiency factor

PMMA optical lens options suitable for all road classifications

High-efficiency driver with constant current output

One-piece silicone gasket resistant to high and low temperatures

Stainless steel fastening materials

Optional NEMA or ZHAGA socket compatible with smart city lighting systems

Optional 10kV spd surge protective device

Applications

Streets and Roads
Parks and Car Lots
Residental Areas
Industrial Zones
Railway Stations

Minimum 70 microns electrostatically powder-coated aluminum injection body and front cover

Minimum 70 microns electrostatically powder-coated mounting arm, adjustable horizontally (-15°, +15°) and vertically (0°, +15°)

4 mm thick tempered glass

High Power LED with L90B10 >100,000 hours high efficiency factor

PMMA optical lens options suitable for all road classifications

High-efficiency driver with constant current output

One-piece silicone gasket resistant to high and low temperatures

Stainless steel fastening materials

Optional NEMA or ZHAGA socket compatible with smart city lighting systems

Optional 10kV spd surge protective device

Nominal Power (W)	75 W
Luminous Flux (lm)	11.250 lm
Efficacy (lm/W)	150 lm/W
Nominal Voltage (V)	220-240 VAC - 50-60 HZ
Power Factor	≥0,95
IEC Protection Class	Class I
Surge Protection	6-10 Kv
Mounting Diameters	Ø42 mm - Ø60 mm
Dimensions	675x345x108 mm
Weight	8,9 kg

Light Color and CRI Options

3000K - CRI 70	37
3000K - CRI 80	38
4000K - CRI 70	47
4000K - CRI 80	48
6500K - CRI 70	67
6500K - CRI 80	68

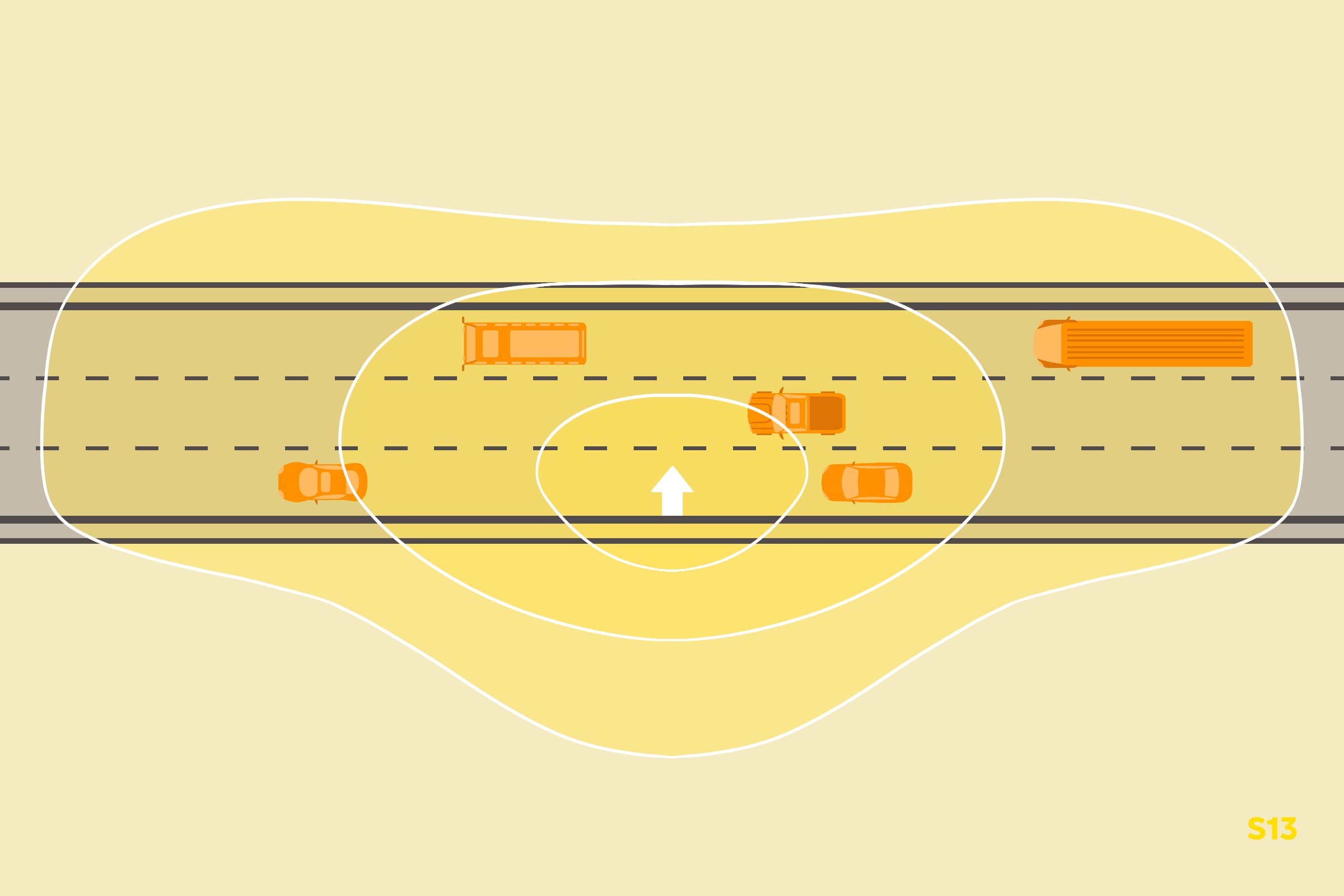

Road optic options

S10M3	11
S12M4	13
S13M4	14
S15M5	16

System Options

On-Off Std	01
1-10V Dim	02
TEDAŞ	06
DALI	07
1-10V with Nema Socket	08
DALI with Zhaga Socket	09

Colour Options

RAL7016MAT	716
RAL9005MAT	905
RAL9016MAT	916

Nominal Power (W)	75 W
Luminous Flux (lm)	11.250 lm
Efficacy (lm/W)	150 lm/W
Nominal Voltage (V)	220-240 VAC - 50-60 HZ
Power Factor	≥0,95
IEC Protection Class	Class I
Surge Protection	6-10 Kv
Mounting Diameters	Ø42 mm - Ø60 mm
Dimensions	675x345x108 mm
Weight	8,9 kg

Light Color and CRI Options

3000K - CRI 70	37
3000K - CRI 80	38
4000K - CRI 70	47
4000K - CRI 80	48
6500K - CRI 70	67
6500K - CRI 80	68

Road optic options

S10M3	11
S12M4	13
S13M4	14
S15M5	16

System Options

On-Off Std	01
1-10V Dim	02
TEDAŞ	06
DALI	07
1-10V with Nema Socket	08
DALI with Zhaga Socket	09

Colour Options

RAL7016MAT	716
RAL9005MAT	905
RAL9016MAT	916

Ürün Kodu

AR

Material Group

LP0

Product Model

C

Lumen Segment

75

Product Power (W)

47

Color and CRI Options

10

Optical Options

01

System Option

716

Body Color Option

S10M4

S12M4

S13M4

S14M4

Datasheet

Download

Dimensions

Download

Assembly Instructions

Download

Certificate

Download

Application Areas

Road & Street

Airports

Ports

Stads

Urban Areas
